REDUCTION

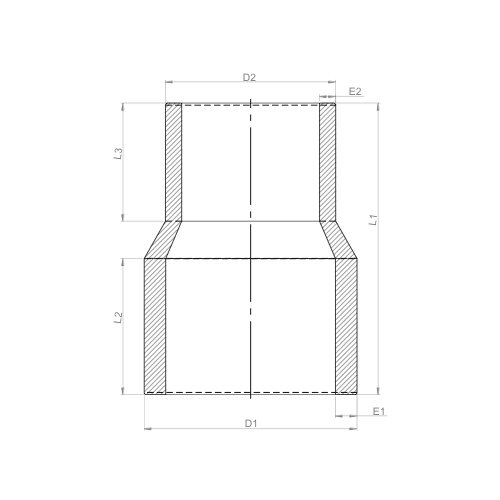

HDPE SPIGOT REDUCER (SPIGOT REDUCER)

HDPE Spigot Reducer is used to join pipes of different diameters and provides diameter change within the pipe network. Butt welding method is used as the joining method in HDPE spigot reducer fittings. Using butt welding method in HDPE spigot reducer product saves time and is easier to apply.

Areas of Use: It is used in cases where the pipe diameter needs to change in pipe systems.

Description

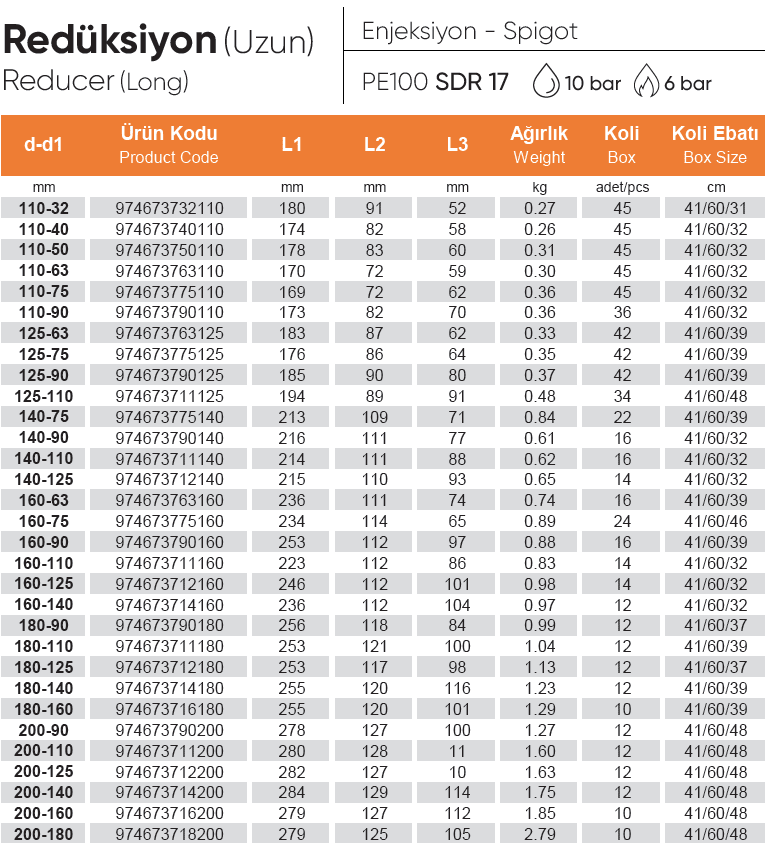

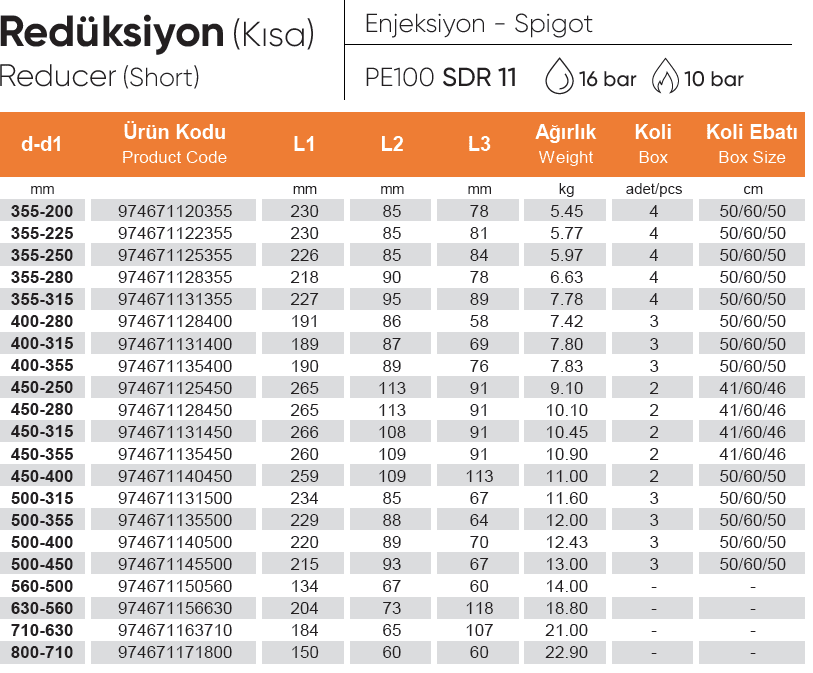

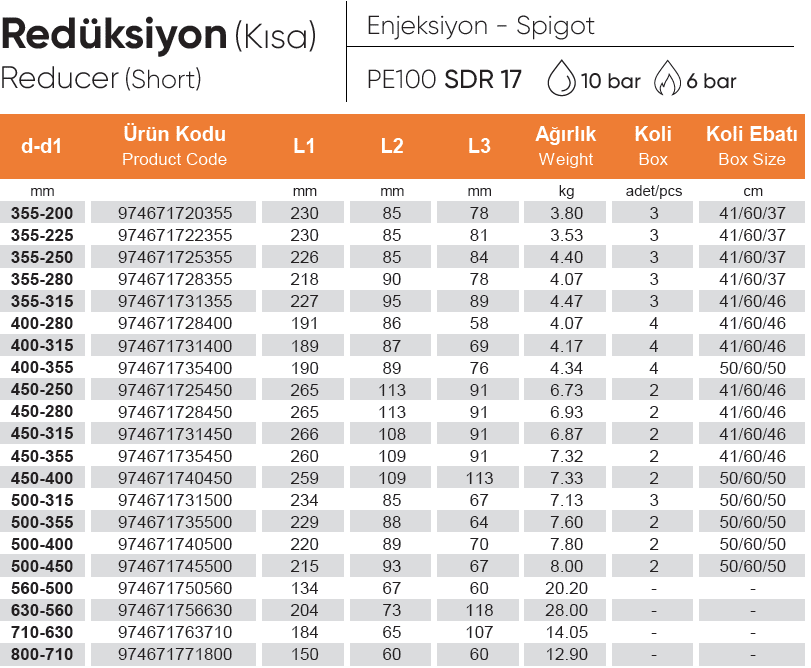

SIRA	ÜRÜN KODU	ÇAP d/d1 [mm]	BASINÇ [bar]	L [mm]	L1 [mm]	L2 [mm]	e [mm]	e1 [mm]	AĞIRLIK [kg]	KOLİ ADEDİ	KOLİ EBATI
SEQ	PRODUCT CODE	SIZE d/d1 [mm]	PRESSURE [bar]	L [mm]	L1 [mm]	L2 [mm]	e [mm]	e1 [mm]	WEIGHT [kg]	IN A PARCEL	PCS PRICE
1	974671702025	25/20	PN10	88.1	42.7	34	2.7	2.3	0.012	1200	41/60/31
2	974671702032	32/20	PN10	84.6	38.65	36	3.4	2.3	0.02	900	41/60/31
3	974671702532	32/25	PN10	85.2	37.2	36.4	3.3	2.7	0.02	800	41/60/31
4	974671703240	40/32	PN10	109.6	53	41.4	2.6	2.1	0.03	400	41/60/31
5	974671103240	40/32	PN16	109.6	53	41.4	4.2	3.4	0.048	400	41/60/31
6	974671703250	50/32	PN10	112	56.5	39	3.1	2.2	0.04	230	41/60/31
7	974671103250	50/32	PN16	112	56.5	39	5	3.4	0.066	230	41/60/31
8	974671704050	50/40	PN10	126.6	65.7	55.3	3.2	2.5	0.05	140	41/60/31
9	974671104050	50/40	PN16	126.6	65.7	55.3	5.2	4	0.086	140	41/60/31
10	974671703263	63/32	PN10	125.9	62.4	40.2	4	2.3	0.07	210	41/60/31
11	974671103263	63/32	PN16	125.9	62.4	40.2	6.5	3.4	0.098	210	41/60/31
12	974671704063	63/40	PN10	145.7	65.6	55.7	4.1	2.5	0.07	210	41/60/31
13	974671104063	63/40	PN16	145.7	65.6	55.7	6.5	4.15	0.114	210	41/60/31
14	974671705063	63/50	PN10	154.8	72.2	63	4.2	3.2	0.11	120	41/60/31
15	974671105063	63/50	PN16	154.8	72.2	63	6.5	5.1	0.168	120	41/60/31
16	974671703275	75/32	PN10	151.2	72.2	53.7	4.7	2.3	0.12	120	41/60/31
17	974671103275	75/32	PN16	151.2	72.2	53.7	7.6	3.4	0.186	120	41/60/31
18	974671704075	75/40	PN10	152.5	74.3	55.6	4.9	2.8	0.11	120	41/60/31
19	974671104075	75/40	PN16	152.5	74.3	55.6	7.6	4.2	0.172	120	41/60/31
20	974671705075	75/50	PN10	145.6	69.8	58.7	5	3.4	0.12	120	41/60/31
21	974671105075	75/50	PN16	145.6	69.8	58.7	7.6	5.2	0.186	120	41/60/31
22	974671706375	75/63	PN10	153	75	65	5	4.1	0.15	75	41/60/31
23	974671106375	75/63	PN16	153	75	65	7.6	5.8	0.226	75	41/60/31
24	974671703290	90/32	PN10	145.5	72	49.3	5.8	2.3	0.14	72	41/60/31
25	974671103290	90/32	PN16	145.5	72	49.3	9.2	3.4	0.21	72	41/60/31
26	974671704090	90/40	PN10	158.5	78	57	5.8	2.6	0.17	72	41/60/31
27	974671104090	90/40	PN16	158.5	78	57	9.2	4	0.25	72	41/60/31
28	974671705090	90/50	PN10	160.5	78	63.6	5.9	3.2	0.18	72	41/60/31
29	974671105090	90/50	PN16	160.5	78	63.6	9.2	5	0.264	72	41/60/31
30	974671706390	90/63	PN10	160.2	73.5	67.4	6	4.2	0.18	70	41/60/31
31	974671106390	90/63	PN16	160.2	73.5	67.4	9.2	6.2	0.264	70	41/60/31
32	974671707590	90/75	PN10	162.5	80.7	71.3	6	4.9	0.21	42	41/60/31
33	974671107590	90/75	PN16	162.5	80.7	71.3	9.2	7.6	0.308	42	41/60/31
34	974671732110	110/32	PN10	180.2	91	51.5	6.8	2.3	0.27	50	41/60/31
35	974671132110	110/32	PN16	180.2	91	51.5	11.1	3.2	0.412	50	41/60/31
36	974671740110	110/40	PN10	173.5	82	57.7	6.9	2.8	0.22	50	41/60/31
37	974671140110	110/40	PN16	173.5	82	57.7	11.1	4.08	0.336	50	41/60/31
38	974671750110	110/50	PN10	177.5	82.6	60	7	3.3	0.28	48	41/60/31
39	974671150110	110/50	PN16	177.5	82.6	60	11.1	5.2	0.42	48	41/60/31
40	974671763110	110/63	PN10	170.3	72	58.6	7	4.2	0.25	45	41/60/31
41	974671163110	110/63	PN16	170.3	72	58.6	11.1	6	0.382	45	41/60/31
42	974671775110	110/75	PN10	168.8	72.3	61.5	7.1	5	0.26	42	41/60/31
43	974671175110	110/75	PN16	168.8	72.3	61.5	11.1	7.6	0.394	42	41/60/31
44	974671790110	110/90	PN10	173	82	70.2	7.2	6	0.31	36	41/60/31
45	974671190110	110/90	PN16	173	82	70.2	11.1	9.2	0.47	36	41/60/31
46	974671775125	125/75	PN10	176	85.7	64	7.6	5	0.34	30	41/60/31
47	974671175125	125/75	PN16	176	85.7	64	11.4	6.8	0.514	30	41/60/31
48	974671790125	125/90	PN10	185.2	89.5	79.5	7.8	5.9	0.4	34	41/60/46
49	974671190125	125/90	PN16	185.2	89.5	79.5	11.6	9.2	0.6	34	41/60/46
50	974671711125	125/110	PN10	193.7	89	91.3	8	6.8	0.48	34	41/60/46
51	974671111125	125/110	PN16	193.7	89	91.3	12.38	11	0.714	34	41/60/46
52	974671790140	140/90	PN10	216.3	111.3	76.7	8.5	6	0.61	14	41/60/31
53	974671190140	140/90	PN16	216.3	111.3	76.7	14	8.9	0.916	14	41/60/31
54	974671711140	140/110	PN10	214.2	110.7	88	8.6	7.2	0.64	14	41/60/31
55	974671111140	140/110	PN16	214.2	110.7	88	13.8	10.7	0.966	14	41/60/31
56	974671712140	140/125	PN10	214.6	110	93.3	8.6	8	0.69	14	41/60/31
57	974671112140	140/125	PN16	214.6	110	93.3	13	11.4	1.04	14	41/60/31
58	974671763160	160/63	PN10	236	111	74	10	4.2	0.8	24	41/60/46
59	974671163160	160/63	PN16	236	111	74	14.8	6	1.198	24	41/60/46
60	974671775160	160/75	PN10	234	114	65	10	5	0.89	24	41/60/46
61	974671175160	160/75	PN16	234	114	65	14.8	7.6	1.328	24	41/60/46
62	974671790160	160/90	PN10	253.4	112	96.7	10.5	5.8	0.9	14	41/60/31
63	974671190160	160/90	PN16	253.4	112	96.7	15.7	9.2	1.35	14	41/60/31
64	974671711160	160/110	PN10	223.2	112	85.9	10.3	6.9	0.88	14	41/60/31
65	974671111160	160/110	PN16	223.2	112	85.9	15	11.1	1.32	14	41/60/31
66	974671712160	160/125	PN10	246.4	112.4	101	10.2	7.6	0.99	14	41/60/31
67	974671112160	160/125	PN16	246.4	112.4	101	15.3	12.6	1.478	14	41/60/31
68	974671714160	160/140	PN10	235.5	112	104.4	10.1	9.1	0.99	12	41/60/31
69	974671114160	160/140	PN16	235.5	112	104.4	14.6	14	1.48	12	41/60/31
70	974671790180	180/90	PN10	255.9	118.4	83.9	11	5.8	0.99	12	41/60/37
71	974671190180	180/90	PN16	255.9	118.4	83.9	18	9.1	1.486	12	41/60/37
72	974671711180	180/110	PN10	253.4	120.6	100.4	11	7.2	1.07	12	41/60/37
73	974671111180	180/110	PN16	253.4	120.6	100.4	18	10.8	1.604	12	41/60/37
74	974671712180	180/125	PN10	252.7	117.3	97.7	11.2	8	1.13	12	41/60/37
75	974671112180	180/125	PN16	252.7	117.3	97.7	18.2	12.6	1.698	12	41/60/37
76	974671714180	180/140	PN10	254.9	120.1	116	11.1	8.8	1.23	12	41/60/37
77	974671114180	180/140	PN16	254.9	120.1	116	18.2	14.1	1.85	12	41/60/37
78	974671716180	180/160	PN10	254.9	120.3	101.4	11.3	10	1.35	8	41/60/37
79	974671116180	180/160	PN16	254.9	120.3	101.4	17.52	14.6	2.025	8	41/60/37
80	974671790200	200/90	PN10	278	127.2	100	12	5.8	1.36	12	41/60/46
81	974671190200	200/90	PN16	278	127.2	100	20.2	8.7	2.044	12	41/60/46
82	974671711200	200/110	PN10	280	128	10.7	12.2	6.8	1.45	12	41/60/46
83	974671111200	200/110	PN16	280	128	10.7	20.2	10.8	2.176	12	41/60/46
84	974671712200	200/125	PN10	282.1	126.55	10.4	12.3	8	1.45	12	41/60/46
85	974671112200	200/125	PN16	282.1	126.55	10.4	20.2	11.5	2.168	12	41/60/46
86	974671714200	200/140	PN10	284.35	128.8	114.2	12.5	9	1.15	12	41/60/46
87	974671114200	200/140	PN16	284.35	128.8	114.2	20.2	12.8	1.73	12	41/60/46
88	974671716200	200/160	PN10	278.8	127.2	111.8	12.5	10	1.64	10	41/60/46
89	974671116200	200/160	PN16	278.8	127.2	111.8	20.2	15.2	2.458	10	41/60/46
90	974671718200	200/180	PN10	279.4	125.2	104.6	13	11.6	1.85	10	41/60/46
91	974671118200	200/180	PN16	279.4	125.2	104.6	19.3	18	2.78	10	41/60/46
92	974671711225	225/110	PN10	287.4	151.3	99	14.5	7.2	1.85	8	41/60/46
93	974671111225	225/110	PN16	287.4	151.3	99	21.2	10.8	2.776	8	41/60/46
94	974671712225	225/125	PN10	297.6	149	114.8	14.4	8.1	1.89	8	41/60/46
95	974671112225	225/125	PN16	297.6	149	114.8	20.6	12.7	2.84	8	41/60/46
96	974671714225	225/140	PN10	294.3	151.4	104.2	14.6	8.6	2.06	8	41/60/46
97	974671114225	225/140	PN16	294.3	151.4	104.2	21.6	14.1	3.084	8	41/60/46
98	974671716225	225/160	PN10	306.2	152.4	110.7	14.6	10.2	2.4	6	41/60/46
99	974671116225	225/160	PN16	306.2	152.4	110.7	21.5	15.8	3.6	6	41/60/46
100	974671718225	225/180	PN10	302.5	154.3	108.4	14.8	10.9	2.27	6	41/60/46
101	974671118225	225/180	PN16	302.5	154.3	108.4	22.7	16.4	3.412	6	41/60/46
102	974671720225	225/200	PN10	304.3	157.2	121.8	14	12.1	2.49	6	41/60/46
103	974671120225	225/200	PN16	304.3	157.2	121.8	20.7	20.5	3.73	6	41/60/46
104	974671711250	250/110	PN10	312.3	130.2	115.8	15	7.2	2.18	12	50/60/50
105	974671111250	250/110	PN16	312.3	130.2	115.8	23.2	11	3.27	12	50/60/50
106	974671712250	250/125	PN10	298.5	133.4	109.1	15.4	8	1.8	12	50/60/50
107	974671112250	250/125	PN16	298.5	133.4	109.1	23	12.1	3.264	12	50/60/50
108	974671714250	250/140	PN10	310.1	128.1	111.6	15.6	9.1	2.38	12	50/60/50
109	974671114250	250/140	PN16	310.1	128.1	111.6	23.5	12.9	3.564	12	50/60/50
110	974671716250	250/160	PN10	302.7	129.8	111	15.8	10.2	2.5	12	50/60/50
111	974671116250	250/160	PN16	302.7	129.8	111	22.7	14.9	3.75	12	50/60/50
112	974671718250	250/180	PN10	274	97.6	178	16	11.6	2.43	12	50/60/50
113	974671118250	250/180	PN16	274	97.6	178	22.7	16.6	3.65	12	50/60/50
114	974671720250	250/200	PN10	300.7	128.4	110.1	16.2	12.8	2.89	8	50/60/50
115	974671120250	250/200	PN16	300.7	128.4	110.1	22.9	19	4.34	8	50/60/50
116	974671722250	250/225	PN10	300.3	130.2	119.7	16	14	3.11	8	50/60/50
117	974671122250	250/225	PN16	300.3	130.2	119.7	22.7	21.4	4.67	8	50/60/50
118	974671711280	280/110	PN10	189.9	73.5	73	17	7.2	1.75	8	41/60/46
119	974671111280	280/110	PN16	189.9	73.5	73	27.2	10.3	2.62	8	41/60/46
120	974671712280	280/125	PN10	187.5	73	69.5	17.4	8	1.79	8	41/60/46
121	974671112280	280/125	PN16	187.5	73	69.5	27	12.1	2.69	8	41/60/46
122	974671716280	280/160	PN10	185.6	75.5	67.7	17.6	10.2	1.98	6	41/60/46
123	974671116280	280/160	PN16	185.6	75.5	67.7	26.25	14.6	2.97	6	41/60/46
124	974671718280	280/180	PN10	183.8	73	76.5	17.6	11	1.97	6	41/60/46
125	974671118280	280/180	PN16	183.8	73	76.5	27.2	17	2.96	6	41/60/46
126	974671720280	280/200	PN10	178.6	75.2	77.2	18	12	2.01	6	41/60/46
127	974671120280	280/200	PN16	178.6	75.2	77.2	28	18.2	3.02	6	41/60/46
128	974671722280	280/225	PN10	177.5	73.8	79.8	17.5	13.6	2.07	6	41/60/46
129	974671122280	280/225	PN16	177.5	73.8	79.8	26.5	20.5	3.1	6	41/60/46
130	974671725280	280/250	PN10	179.8	73	86.1	18	15.2	2.2	6	41/60/46
131	974671125280	280/250	PN16	179.8	73	86.1	27.5	25	3.3	6	41/60/46
132	974671716315	315/160	PN10	225.5	84.4	102.6	20	10.2	2.38	6	41/60/46
133	974671116315	315/160	PN16	225.5	84.4	102.6	30	14.75	3.57	6	41/60/46
134	974671720315	315/200	PN10	263	131.5	88.4	20.2	12.1	3.69	6	41/60/46
135	974671120315	315/200	PN16	263	131.5	88.4	29.25	18.9	5.53	6	41/60/46
136	974671722315	315/225	PN10	123.7	84.3	86.5	20.3	14	2.79	6	41/60/46
137	974671122315	315/225	PN16	123.7	84.3	86.5	30	21	4.19	6	41/60/46
138	974671725315	315/250	PN10	262.9	135	90.7	19	16	3.81	4	41/60/46
139	974671125315	315/250	PN16	262.9	135	90.7	30	23	5.72	4	41/60/46
140	974671728315	315/280	PN10	208	88.4	97.4	20.5	17.2	3.09	4	41/60/46
141	974671128315	315/280	PN16	208	88.4	97.4	29.2	25.5	4.63	4	41/60/46
142	974671720355	355/200	PN10	230	85	78	22	12.6	3.8	3	41/60/37
143	974671120355	355/200	PN16	230	85	78	35.3	18.6	5.35	3	41/60/37
144	974671722355	355/225	PN10	229.5	84.5	81.2	22.3	14	3.53	3	41/60/37
145	974671122355	355/225	PN16	229.5	84.5	81.2	33.9	21.2	5.3	3	41/60/37
146	974671725355	355/250	PN10	225.8	85	84.4	23.2	16.2	4.4	3	41/60/37
147	974671125355	355/250	PN16	225.8	85	84.4	33.3	23	4.4	3	41/60/37
148	974671728355	355/280	PN10	217.6	89.9	78	23.1	18	4.07	3	41/60/37
149	974671128355	355/280	PN16	217.6	89.9	78	33.3	26.5	6.1	3	41/60/37
150	974671731355	355/315	PN10	227.4	94.5	89.2	23	20	4.47	3	41/60/46
151	974671131355	355/315	PN16	227.4	94.5	89.2	32.2	31	6.7	3	41/60/46
152	974671728400	400/280	PN10	190.5	85.5	58	25	17	4.07	4	41/60/46
153	974671128400	400/280	PN16	190.5	85.5	58	36.8	25.4	6.1	4	41/60/46
154	974671731400	400/315	PN10	188.5	87.4	68.7	25.3	20	4.17	4	41/60/46
155	974671131400	400/315	PN16	188.5	87.4	68.7	36.6	29.6	6.25	4	41/60/46
156	974671735400	400/355	PN10	190	89	76.4	25.9	22.6	4.67	3	41/60/46
157	974671135400	400/355	PN16	190	89	76.4	36.93	32.7	7	3	41/60/46
158	974671725450	450/250	PN10	265	112.5	91	28.6	15.6	6.73	2	41/60/46
159	974671125450	450/250	PN16	265	112.5	91	41.5	22.7	10.1	2	41/60/46
160	974671728450	450/280	PN10	264.5	112.5	91	29	18	6.93	2	41/60/46
161	974671128450	450/280	PN16	264.5	112.5	91	42.6	26.1	10.4	2	41/60/46
162	974671731450	450/315	PN10	266	108	91	29	20	6.87	2	41/60/46
163	974671131450	450/315	PN16	266	108	91	42.3	29.3	10.7	2	41/60/46
164	974671735450	450/355	PN10	259.5	108.5	91	28.6	23.1	7.4	2	41/60/46
165	974671135450	450/355	PN16	259.5	108.5	91	41	33.4	11.1	2	41/60/46
166	974671740450	450/400	PN10	259.3	109	113	29	26	8.23	2	50/60/50
167	974671140450	450/400	PN16	259.3	109	113	42.3	36.4	12.35	2	50/60/50
168	974671731500	500/315	PN10	233.5	85.2	66.8	31	20.5	7.13	3	50/60/50
169	974671131500	500/315	PN16	233.5	85.2	66.8	46.5	30	10.7	3	50/60/50
170	974671735500	500/355	PN10	229	88.4	64	46.5	30	10.7	3	50/60/50
171	974671135500	500/355	PN16	229	88.4	64	46.5	30	11.2	3	50/60/50
172	974671740500	500/400	PN10	220	88.6	69.7	46.5	30	11.2	3	50/60/50
173	974671140500	500/400	PN16	220	88.6	69.7	46.5	30	12	3	50/60/50
174	974671745500	500/450	PN10	215	93.3	66.7	46.5	30	12	3	50/60/50
175	974671145500	500/450	PN16	215	93.3	66.7	46.5	30	12.4	3	50/60/50
176	974671750560	560/500	PN10	134	66.5	60.4	32	29	10.3	-	-
177	974671150560	560/500	PN16	134	66.5	60.4	51	45.2	28.3	-	-
178	974671756630	630/560	PN10	203.5	73.1	117.5	37.2	31.8	18.5	-	-
179	974671156630	630/560	PN16	203.5	73.1	117.5	57	50.4	30.2	-	-
180	974671763710	710/630	PN10	184.4	64.5	107	42	36.9	20.6	-	-
181	974671163710	710/630	PN16	184.4	64.5	107	64.2	56.8	19	-	-
182	974671771800	800/710	PN10	150	60	60	47.2	41.9	16	-	-
183	974671171800	800/710	PN16	150	60	60	72.5	64.6	22.9	-	-

Category HDPE SPİGOT

Recent Posts

IFAT MUNICH 2024 – GERMANY

MCE ITALY 2024

AQUATHERM MOSCOW 2024 – RUSSIA

Get in touch!

REDUCTION

FOLLOW US ON:

Recent Posts

IFAT MUNICH 2024 – GERMANY

MCE ITALY 2024

AQUATHERM MOSCOW 2024 – RUSSIA

Get in touch!

REDUCTION
