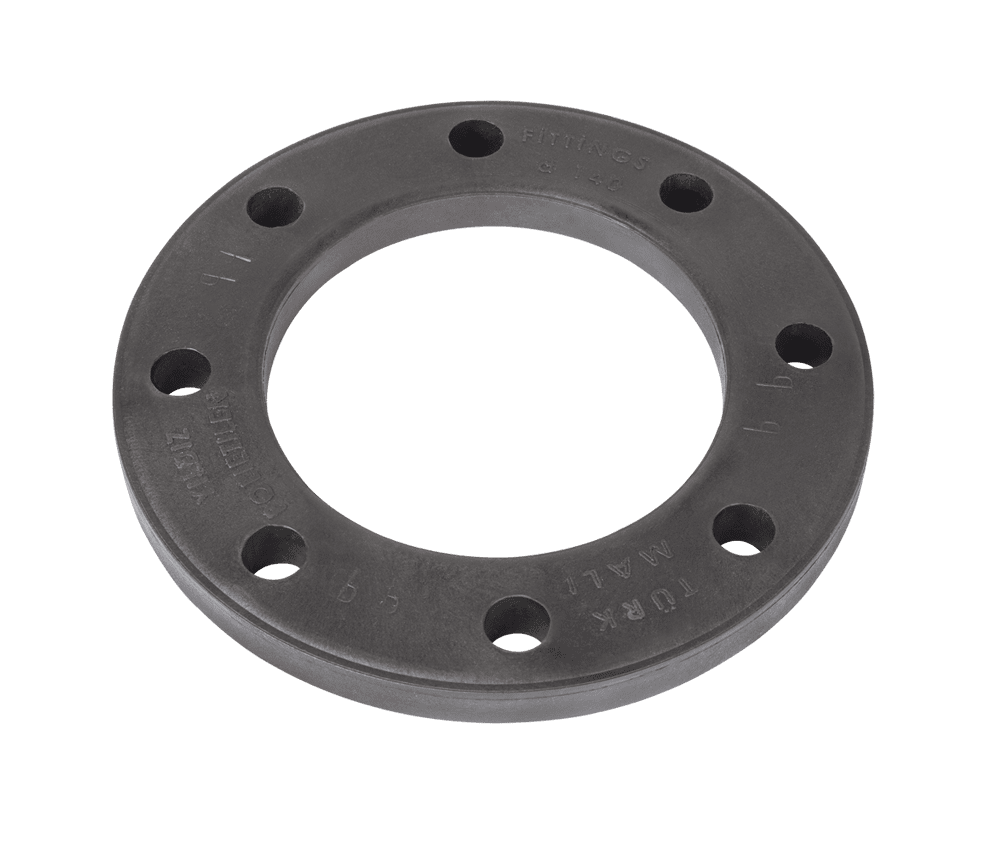

PP COATED STEEL FLANGE PN 16
PP COATED STEEL FLANGE:It is a connecting element obtained by coating a plastic material called polypropylene (PP) on a steel flange.In this way, both the durability of steel and the corrosion resistance of PP are offered together. Steel can be exposed to rust and corrosion over time. PP coating eliminates this problem and extends the life of the flange.
| SIRA | ÜRÜN KODU | ÇELİK ANMA ÇAPI | PE ANMA ÇAPI | FLANŞ İÇ ÇAPI | DELİKLER ARASI MESAFE | FLANŞ DIŞ ÇAPI | DELİK ÇAPI | KALINLIK | DELİK SAYISI | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEQ | PRODUCT CODE | SIZE OF STEEL dN [mm] | SIZE OF PE dN [mm] | dp [mm] | K [mm] | D [mm] | d [mm] | b [mm] | n | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 970872100015 | 15 | 20 | 28 | 65 | 95 | 14 | 14 | 4 | 0.1 | - | - |
| 2 | 970872100020 | 20 | 25 | 34 | 75 | 105 | 14 | 16 | 4 | 0.15 | - | - |
| 3 | 970872100025 | 25 | 32 | 42 | 85 | 115 | 14 | 16 | 4 | 0.41 | - | - |
| 4 | 970872100032 | 32 | 40 | 51 | 100 | 140 | 18 | 16 | 4 | 0.6 | - | - |
| 5 | 970872100040 | 40 | 50 | 62 | 110 | 150 | 18 | 16 | 4 | 0.66 | - | - |
| 6 | 970872100050 | 50 | 63 | 78 | 125 | 165 | 18 | 18 | 4 | 0.89 | - | - |
| 7 | 970872100065 | 65 | 75 | 92 | 145 | 185 | 18 | 18 | 4 | 1.07 | - | - |
| 8 | 970872100080 | 80 | 90 | 108 | 160 | 200 | 18 | 20 | 8 | 1.28 | - | - |
| 9 | 970872100100 | 100 | 110 | 125 | 180 | 220 | 18 | 20 | 8 | 1.37 | - | - |
| 10 | 970872100100 | 100 | 125 | 135 | 180 | 220 | 18 | 20 | 8 | 1.37 | - | - |
| 11 | 970872100125 | 125 | 140 | 158 | 210 | 250 | 18 | 22 | 8 | 1.91 | - | - |
| 12 | 970872100150 | 150 | 160 | 178 | 240 | 285 | 22 | 22 | 8 | 2.57 | - | - |
| 13 | 970872100150 | 150 | 180 | 188 | 240 | 285 | 22 | 22 | 8 | 2.34 | - | - |
| 14 | 970872100200 | 200 | 200 | 235 | 295 | 340 | 22 | 26 | 12 | 3.53 | - | - |
| 15 | 970872100200 | 200 | 225 | 235 | 295 | 340 | 22 | 26 | 12 | 3.53 | - | - |
| 16 | 970872100250 | 250 | 250 | 288 | 355 | 405 | 26 | 29 | 12 | 4.62 | - | - |
| 17 | 970872100250 | 250 | 280 | 294 | 355 | 405 | 26 | 29 | 12 | 4.67 | - | - |
| 18 | 970872100300 | 300 | 315 | 338 | 410 | 460 | 26 | 31 | 12 | 6.35 | - | - |
| 19 | 970872100350 | 350 | 355 | - | - | - | - | - | - | - | - | - |
| 20 | 970872100400 | 400 | 400 | - | - | - | - | - | - | - | - | - |
| 21 | 970872100450 | 450 | 450 | - | - | - | - | - | - | - | - | - |
