FLANGE ADAPTER – LONG
HDPE SPIGOT FLANGE ADAPTER (SPIGOT FLANGE ADAPTER):
Used to connect HDPE pipes to flanged equipment or other flanged pipe systems. While the spigot end is welded to the HDPE pipe, the flange end is connected to the corresponding flange. Butt welding method is used as the joining method in hdpe spigot flange adapter fittings. Using butt welding method in hdpe spigot flange adapter product saves time and is easier to apply.
Areas of Use: It is widely used to connect HDPE pipes to valves, pumps or other flanged components.

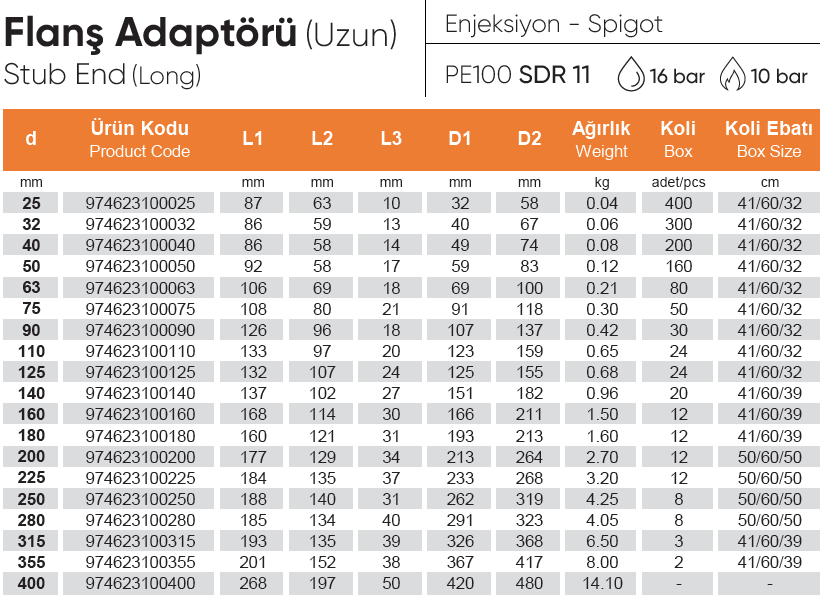

| SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | L [mm] | L1 [mm] | h [mm] | d1 [mm] | d2 [mm] | e [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEQ. | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | L [mm] | L1 [mm] | h [mm] | d1 [mm] | d2 [mm] | e [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 974623100025 | 25 | PN16 | 86.7 | 63.2 | 9.8 | 31.5 | 58.2 | 2.7 | 0.036 | 250 | 30/60/41 |
| 2 | 974623700032 | 32 | PN10 | 85.7 | 58.5 | 12.5 | 39.8 | 66.5 | 2.3 | 0.04 | 200 | 30/60/41 |
| 3 | 974623100032 | 32 | PN16 | 85.7 | 58.5 | 12.5 | 39.8 | 66.5 | 3.2 | 0.064 | 200 | 30/60/41 |
| 4 | 974623700040 | 40 | PN10 | 86.1 | 58 | 14 | 48.7 | 74.1 | 2.8 | 0.06 | 160 | 30/60/41 |
| 5 | 974623100040 | 40 | PN16 | 86.1 | 58 | 14 | 48.7 | 74.1 | 4.04 | 0.086 | 160 | 30/60/41 |
| 6 | 974623700050 | 50 | PN10 | 92.3 | 58 | 16.5 | 58.8 | 82.7 | 3.4 | 0.08 | 120 | 30/60/41 |
| 7 | 974623100050 | 50 | PN16 | 92.3 | 58 | 16.5 | 58.8 | 82.7 | 5 | 0.118 | 120 | 30/60/41 |
| 8 | 974623700063 | 63 | PN10 | 105.7 | 69 | 17.5 | 69 | 100 | 4 | 0.13 | 70 | 30/60/41 |
| 9 | 974623100063 | 63 | PN16 | 105.7 | 69 | 17.5 | 69 | 100 | 6.5 | 0.194 | 70 | 30/60/41 |
| 10 | 974623700075 | 75 | PN10 | 108 | 79.5 | 20.5 | 90.6 | 118.2 | 4.8 | 0.2 | 50 | 30/60/41 |
| 11 | 974623100075 | 75 | PN16 | 108 | 79.5 | 20.5 | 90.6 | 118.2 | 7.6 | 0.3 | 50 | 30/60/41 |
| 12 | 974623700090 | 90 | PN10 | 125.5 | 95.5 | 17.5 | 107.2 | 137 | 5.7 | 0.37 | 30 | 30/60/41 |
| 13 | 974623100090 | 90 | PN16 | 125.5 | 95.5 | 17.5 | 107.2 | 137 | 9.2 | 0.4 | 30 | 30/60/41 |
| 14 | 974623700110 | 110 | PN10 | 133 | 97 | 20.3 | 122.7 | 158.7 | 7.4 | 0.51 | 24 | 30/60/41 |
| 15 | 974623100110 | 110 | PN16 | 133 | 97 | 20.3 | 122.7 | 158.7 | 11.1 | 0.656 | 24 | 30/60/41 |
| 16 | 974623700125 | 125 | PN10 | 131.8 | 107.4 | 23.5 | 124.7 | 155.3 | 8.09 | 0.47 | 20 | 30/60/41 |
| 17 | 974623100125 | 125 | PN16 | 131.8 | 107.4 | 23.5 | 124.7 | 155.3 | 12.5 | 0.71 | 20 | 30/60/41 |
| 18 | 974623700140 | 140 | PN10 | 137.2 | 102.2 | 26.6 | 150.6 | 182.3 | 9 | 0.64 | 20 | 41/60/46 |
| 19 | 974623100140 | 140 | PN16 | 137.2 | 102.2 | 26.6 | 150.6 | 182.3 | 14.1 | 0.964 | 20 | 41/60/46 |
| 20 | 974623700160 | 160 | PN10 | 168.1 | 114.36 | 30 | 166.16 | 211.16 | 10.6 | 1.29 | 12 | 41/60/46 |
| 21 | 974623100160 | 160 | PN16 | 168.1 | 114.36 | 30 | 166.16 | 211.16 | 16.2 | 1.54 | 12 | 41/60/46 |
| 22 | 974623700180 | 180 | PN10 | 159.5 | 121.3 | 31.2 | 193.3 | 212.5 | 11.23 | 1.04 | 12 | 41/60/46 |
| 23 | 974623100180 | 180 | PN16 | 159.5 | 121.3 | 31.2 | 193.3 | 212.5 | 17.35 | 1.56 | 12 | 41/60/46 |
| 24 | 974623700200 | 200 | PN10 | 177 | 129 | 33.5 | 213.2 | 264.2 | 16 | 2.5 | 12 | 41/60/46 |
| 25 | 974623100200 | 200 | PN16 | 177 | 129 | 33.5 | 213.2 | 264.2 | 18.7 | 2.64 | 12 | 41/60/46 |
| 26 | 974623700225 | 225 | PN10 | 184.4 | 134.7 | 36.7 | 232.9 | 268 | 14.4 | 2.38 | 12 | 41/60/46 |
| 27 | 974623100225 | 225 | PN16 | 184.4 | 134.7 | 36.7 | 232.9 | 268 | 21.2 | 3.08 | 12 | 41/60/46 |
| 28 | 974623700250 | 250 | PN10 | 187.5 | 151.8 | 31.2 | 261.5 | 318.5 | 15.7 | 3.2 | 8 | 41/60/46 |
| 29 | 974623100250 | 250 | PN16 | 187.5 | 151.8 | 31.2 | 261.5 | 318.5 | 24.8 | 4.24 | 8 | 41/60/46 |
| 30 | 974623700280 | 280 | PN10 | 185.3 | 133.8 | 39.5 | 291.4 | 323 | 18.2 | 3.3 | 8 | 41/60/46 |
| 31 | 974623100280 | 280 | PN16 | 185.3 | 133.8 | 39.5 | 291.4 | 323 | 26.23 | 4.22 | 8 | 41/60/46 |
| 32 | 974623700315 | 315 | PN10 | 109.8 | 68.2 | 35 | 325.8 | 368 | 20.7 | 5.11 | 3 | 41/60/46 |
| 33 | 974623100315 | 315 | PN16 | 109.8 | 68.2 | 35 | 325.8 | 368 | 24.8 | 6.02 | 3 | 41/60/46 |
| 34 | 974623700355 | 355 | PN10 | 201 | 152 | 38 | 367 | 417 | 21.51 | 5.13 | 2 | 41/60/46 |
| 35 | 974623100355 | 355 | PN16 | 201 | 152 | 38 | 367 | 417 | 33.25 | 7.7 | 2 | 41/60/46 |
