EQUAL TEE
HDPE SPIGOT EQUAL TEE (SPIGOT EQUAL TEE):

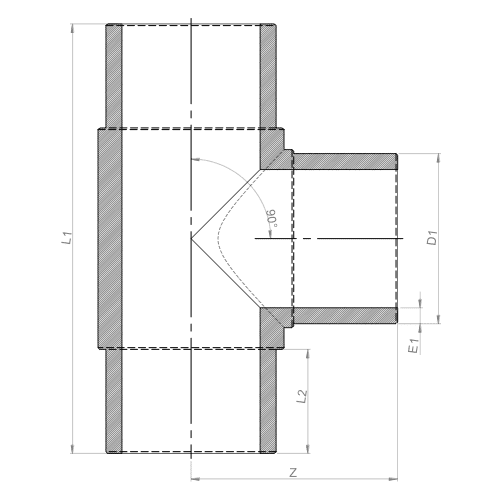

Hdpe spigot equal tees are T-shaped and have the same diameter length on three sides. Known for its high quality and affordable price, hdpe spigot equal tee can be used to remove a different line from the main line or to divide the line into 3. Butt welding method is used as a joining method in hdpe spigot equal tee additional parts. Using butt welding method in hdpe spigot tee product saves time and is easier to apply.
Areas of Use: It is used to create active new line connections in HDPE pipelines.
| SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|
| SEQ. | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 974638700032 | 32ӿ32 | PN10 | 175.5 | 81 | 49 | 2.3 | 0.06 | 100 | 30/60/41 |
| 2 | 974638100032 | 32ӿ32 | PN16 | 175.5 | 81 | 49 | 3 | 0.094 | 100 | 30/60/41 |
| 3 | 974638700040 | 40ӿ40 | PN10 | 188.6 | 97.5 | 55.6 | 2.8 | 0.11 | 80 | 30/60/41 |
| 4 | 974638100040 | 40ӿ40 | PN16 | 188.6 | 97.5 | 55.6 | 4.05 | 0.164 | 80 | 30/60/41 |
| 5 | 974638700050 | 50ӿ50 | PN10 | 214.1 | 111.7 | 61.2 | 3.4 | 0.18 | 50 | 30/60/41 |
| 6 | 974638100050 | 50ӿ50 | PN16 | 214.1 | 111.7 | 61.2 | 4.8 | 0.275 | 50 | 30/60/41 |
| 7 | 974638700063 | 63ӿ63 | PN10 | 246 | 123 | 66 | 4.12 | 0.3 | 32 | 30/60/41 |
| 8 | 974638100063 | 63ӿ63 | PN16 | 246 | 123 | 66 | 6.37 | 0.45 | 32 | 30/60/41 |
| 9 | 974638700075 | 75ӿ75 | PN10 | 276.6 | 133.5 | 70.2 | 4.79 | 0.49 | 20 | 30/60/41 |
| 10 | 974638100075 | 75ӿ75 | PN16 | 276.6 | 133.5 | 70.2 | 7.4 | 0.73 | 20 | 30/60/41 |
| 11 | 974638700090 | 90ӿ90 | PN10 | 288.9 | 147 | 79.5 | 5.8 | 0.75 | 16 | 30/60/41 |
| 12 | 974638100090 | 90ӿ90 | PN16 | 288.9 | 147 | 79.5 | 9.2 | 1.12 | 16 | 30/60/41 |
| 13 | 974638700110 | 110ӿ110 | PN10 | 343 | 167 | 91.1 | 6.6 | 1.3 | 14 | 41/60/46 |
| 14 | 974638100110 | 110ӿ110 | PN16 | 343 | 167 | 91.1 | 10.2 | 2.458 | 14 | 41/60/46 |
| 15 | 974638700125 | 125ӿ125 | PN10 | 369.1 | 189 | 95.5 | 8.15 | 1.55 | 10 | 41/60/46 |
| 16 | 974638100125 | 125ӿ125 | PN16 | 369.1 | 189 | 95.5 | 12.6 | 2.32 | 10 | 41/60/46 |
| 17 | 974638700140 | 140ӿ140 | PN10 | 355.5 | 179.4 | 90.4 | 8.54 | 1.67 | 8 | 41/60/46 |
| 18 | 974638100140 | 140ӿ140 | PN16 | 355.5 | 179.4 | 90.4 | 13.2 | 2.5 | 8 | 41/60/46 |
| 19 | 974638700160 | 160ӿ160 | PN10 | 430.7 | 208.5 | 108.5 | 10.6 | 3.4 | 7 | 50/60/50 |
| 20 | 974638100160 | 160ӿ160 | PN16 | 430.7 | 208.5 | 108.5 | 14.65 | 4.7 | 7 | 50/60/50 |
| 21 | 974638700180 | 180ӿ180 | PN10 | 516 | 230 | 115 | 10.8 | 3.86 | 4 | 50/60/50 |
| 22 | 974638100180 | 180ӿ180 | PN16 | 516 | 230 | 115 | 16.5 | 5.786 | 4 | 50/60/50 |
| 23 | 974638700200 | 200ӿ200 | PN10 | 505 | 243.2 | 122.5 | 11.7 | 5.7 | 3 | 50/60/50 |
| 24 | 974638100200 | 200ӿ200 | PN16 | 505 | 243.2 | 122.5 | 18.7 | 7.72 | 3 | 50/60/50 |
| 25 | 974638700225 | 225ӿ225 | PN10 | 533 | 256.9 | 123.7 | 13.5 | 6.53 | 3 | 50/60/50 |
| 26 | 974638100225 | 225ӿ225 | PN16 | 533 | 256.9 | 123.7 | 20.6 | 9.05 | 3 | 50/60/50 |
| 27 | 974638700250 | 250ӿ250 | PN10 | 581 | 292 | 137 | 20.5 | 11.2 | 2 | 50/60/50 |
| 28 | 974638100250 | 250ӿ250 | PN16 | 581 | 292 | 137 | 23.2 | 12.94 | 2 | 50/60/50 |
| 29 | 974638700280 | 280*280 | PN10 | 565 | 280.2 | 123 | 16.7 | 11.5 | 1 | 50/60/50 |
| 30 | 974638100280 | 280*280 | PN16 | 565 | 280.2 | 123 | 25.5 | 15.13 | 1 | 50/60/50 |
| 31 | 974638700315 | 315*315 | PN10 | 708 | 334.3 | 152.4 | 20.7 | 17.9 | - | - |
| 32 | 974638100315 | 315*315 | PN16 | 708 | 334.3 | 152.4 | 31.2 | 23.688 | - | - |
