ELBOW °90
ELBOW 90: Confection, unlike injection, means special production by cutting pipes and joining them with butt welding method with special equipment and tools, not with injection machines. 90 ° Elbows are a connection element used to make 90 ° direction change in pipelines. It is welded to the system by butt welding or using a suitable EF additional piece. It is suitable for water lines.

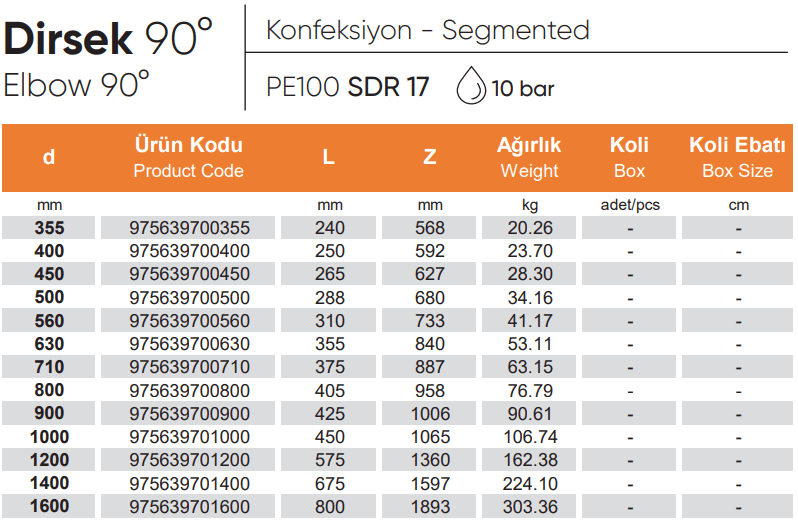

| SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|
| SEQ | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 975639700250 | 250 | PN10 | 200 | 473.21 | 386.37 | 14.8 | 11.84 | - | - |
| 2 | 975639100250 | 250 | PN16 | 200 | 473.21 | 386.37 | 22.7 | 18.16 | - | - |
| 3 | 975639700280 | 280 | PN10 | 220 | 520.53 | 425 | 16.6 | 14.61 | - | - |
| 4 | 975639100280 | 280 | PN16 | 220 | 520.53 | 425 | 25.4 | 22.35 | - | - |
| 5 | 975639700315 | 315 | PN10 | 225 | 532.36 | 434.66 | 18.7 | 16.83 | - | - |
| 6 | 975639100315 | 315 | PN16 | 225 | 532.36 | 434.66 | 28.6 | 25.74 | - | - |
| 7 | 975639700355 | 355 | PN10 | 240 | 567.85 | 463.64 | 21.1 | 20.26 | - | - |
| 8 | 975639100355 | 355 | PN16 | 240 | 567.85 | 463.64 | 32.2 | 30.91 | - | - |
| 9 | 975639700400 | 400 | PN10 | 250 | 591.51 | 482.96 | 23.7 | 23.7 | - | - |
| 10 | 975639100400 | 400 | PN16 | 250 | 591.51 | 482.96 | 36.3 | 36.3 | - | - |
| 11 | 975639700450 | 450 | PN10 | 265 | 627 | 511.93 | 26.7 | 28.3 | - | - |
| 12 | 975639100450 | 450 | PN16 | 265 | 627 | 511.93 | 40.9 | 43.35 | - | - |
| 13 | 975639700500 | 500 | PN10 | 287.5 | 680.23 | 555.4 | 29.7 | 34.16 | - | - |
| 14 | 975639100500 | 500 | PN16 | 287.5 | 680.23 | 555.4 | 45.4 | 52.21 | - | - |
| 15 | 975639700560 | 560 | PN10 | 310 | 733.47 | 598.87 | 33.2 | 41.17 | - | - |
| 16 | 975639100560 | 560 | PN16 | 310 | 733.47 | 598.87 | 50.8 | 62.99 | - | - |
| 17 | 975639700630 | 630 | PN10 | 355 | 839.94 | 685.8 | 37.4 | 53.11 | - | - |
| 18 | 975639100630 | 630 | PN16 | 355 | 839.94 | 685.8 | 57.2 | 81.22 | - | - |
| 19 | 975639700710 | 710 | PN10 | 375 | 887.26 | 724.43 | 42.1 | 63.15 | - | - |
| 20 | 975639100710 | 710 | PN16 | 375 | 887.26 | 724.43 | 64.5 | 96.75 | - | - |
| 21 | 975639700800 | 800 | PN10 | 405 | 958.24 | 782.39 | 47.4 | 76.79 | - | - |
| 22 | 975639100800 | 800 | PN16 | 405 | 958.24 | 782.39 | 72.8 | 117.94 | - | - |
| 23 | 975639700900 | 900 | PN10 | 425 | 1005.56 | 821.03 | 53.3 | 90.61 | - | - |
| 24 | 975639100900 | 900 | PN16 | 425 | 1005.56 | 821.03 | 81.7 | 138.89 | - | - |
| 25 | 975639701000 | 1000 | PN10 | 450 | 1064.71 | 869.32 | 59.3 | 106.74 | - | - |
| 26 | 975639101000 | 1000 | PN16 | 450 | 1064.71 | 869.32 | 90.8 | 163.44 | - | - |
| 27 | 975639701200 | 1200 | PN10 | 575 | 1360.46 | 1110.8 | 70.6 | 162.38 | - | - |
| 28 | 975639101200 | 1200 | PN16 | 575 | 1360.46 | 1110.8 | - | - | - | - |
| 29 | 975639701400 | 1400 | PN10 | 675 | 1597.07 | 1303.98 | 83 | 224.1 | - | - |
| 30 | 975639101400 | 1400 | PN16 | 675 | 1597.07 | 1303.98 | - | - | - | - |
| 31 | 975639701600 | 1600 | PN10 | 800 | 1892.82 | 1545.46 | 94.8 | 303.36 | - | - |
| 32 | 975639101600 | 1600 | PN16 | 800 | 1892.82 | 1545.46 | - | - | - | - |
