ELBOW °45
ELBOW 45: Confection, unlike injection, means special production by cutting pipes and joining them with butt welding method with special equipment and tools, not with injection machines. 45° Elbows are a connection element used to make 45° direction change in pipelines. It is welded to the system by butt welding or using a suitable EF additional piece. It is suitable for water lines.

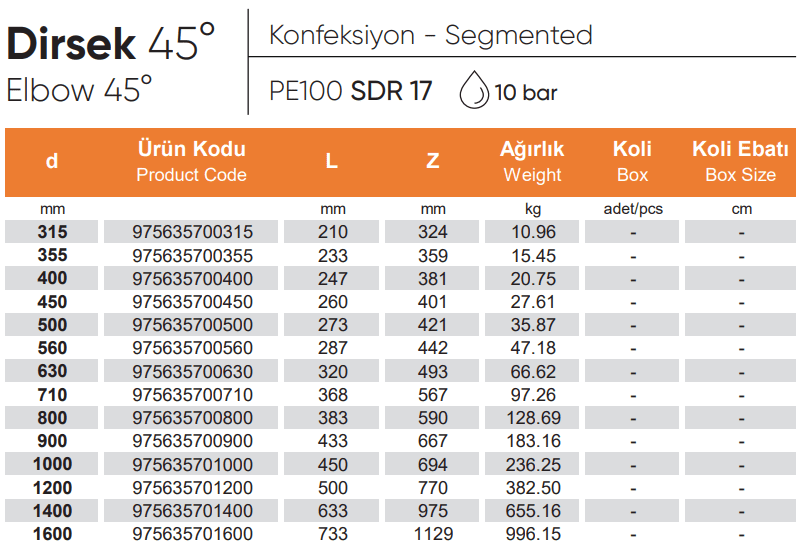

| SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | L [mm] | z [mm] | r [mm] | e [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|
| SEQ | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | L [mm] | z [mm] | r [mm] | e [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 975635700090 | 90 | PN10 | 127 | 195.73 | 165.93 | 5.4 | 0.56 | 16 | 41/60/31 |
| 2 | 975635100090 | 90 | PN16 | 127 | 195.73 | 165.93 | 8.2 | 0.81 | 16 | 41/60/31 |
| 3 | 975635700110 | 110 | PN10 | 127 | 195.73 | 165.93 | 6.6 | 0.83 | 12 | 41/60/46 |
| 4 | 975635100110 | 110 | PN16 | 127 | 195.73 | 165.93 | 10 | 1.2 | 12 | 41/60/46 |
| 5 | 975635700125 | 125 | PN10 | 127 | 195.73 | 165.93 | 7.4 | 1.05 | 8 | 41/60/46 |
| 6 | 975635100125 | 125 | PN16 | 127 | 195.73 | 165.93 | 11.4 | 1.55 | 8 | 41/60/46 |
| 7 | 975635700140 | 140 | PN10 | 160 | 246.59 | 209.05 | 8.3 | 1.66 | 5 | 41/60/46 |
| 8 | 975635100140 | 140 | PN16 | 160 | 246.59 | 209.05 | 12.7 | 2.44 | 5 | 41/60/46 |
| 9 | 975635700160 | 160 | PN10 | 160 | 246.59 | 209.05 | 9.5 | 2.17 | 4 | 50/60/50 |
| 10 | 975635100160 | 160 | PN16 | 160 | 246.59 | 209.05 | 14.6 | 3.2 | 4 | 50/60/50 |
| 11 | 975635700180 | 180 | PN10 | 170 | 262 | 222.12 | 10.7 | 2.91 | 3 | 50/60/50 |
| 12 | 975635100180 | 180 | PN16 | 170 | 262 | 222.12 | 16.4 | 4.29 | 3 | 50/60/50 |
| 13 | 975635700200 | 200 | PN10 | 170 | 262 | 222.12 | 11.9 | 3.6 | 2 | 50/60/50 |
| 14 | 975635100200 | 200 | PN16 | 170 | 262 | 222.12 | 18.2 | 5.3 | 2 | 50/60/50 |
| 15 | 975635700225 | 225 | PN10 | 185 | 285.12 | 241.71 | 13.4 | 4.96 | - | - |
| 16 | 975635100225 | 225 | PN16 | 185 | 285.12 | 241.71 | 20.5 | 7.27 | - | - |
| 17 | 975635700250 | 250 | PN10 | 185 | 285.12 | 241.71 | 14.8 | 6.11 | - | - |
| 18 | 975635100250 | 250 | PN16 | 185 | 285.12 | 241.71 | 22.7 | 8.99 | - | - |
| 19 | 975635700280 | 280 | PN10 | 200 | 308.24 | 261.32 | 16.6 | 8.22 | - | - |
| 20 | 975635100280 | 280 | PN16 | 200 | 308.24 | 261.32 | 25.4 | 12.18 | - | - |
| 21 | 975635700315 | 315 | PN10 | 210 | 323.65 | 274.38 | 18.7 | 10.96 | - | - |
| 22 | 975635100315 | 315 | PN16 | 210 | 323.65 | 274.38 | 28.6 | 16.13 | - | - |
| 23 | 975635700355 | 355 | PN10 | 233 | 359.1 | 304.43 | 21.1 | 15.45 | - | - |
| 24 | 975635100355 | 355 | PN16 | 233 | 359.1 | 304.43 | 32.2 | 22.72 | - | - |
| 25 | 975635700400 | 400 | PN10 | 247 | 380.68 | 322.72 | 23.7 | 20.75 | - | - |
| 26 | 975635100400 | 400 | PN16 | 247 | 380.68 | 322.72 | 36.3 | 30.6 | - | - |
| 27 | 975635700450 | 450 | PN10 | 260 | 400.71 | 339.71 | 26.7 | 27.61 | - | - |
| 28 | 975635100450 | 450 | PN16 | 260 | 400.71 | 339.71 | 40.9 | 40.79 | - | - |
| 29 | 975635700500 | 500 | PN10 | 273 | 420.75 | 356.69 | 29.7 | 35.87 | - | - |
| 30 | 975635100500 | 500 | PN16 | 273 | 420.75 | 356.69 | 45.4 | 52.83 | - | - |
| 31 | 975635700560 | 560 | PN10 | 287 | 442.3 | 374.98 | 33.2 | 47.18 | - | - |
| 32 | 975635100560 | 560 | PN16 | 287 | 442.3 | 374.98 | 50.8 | 69.57 | - | - |
| 33 | 975635700630 | 630 | PN10 | 320 | 493.18 | 418 | 37.4 | 66.62 | - | - |
| 34 | 975635100630 | 630 | PN16 | 320 | 493.18 | 418 | 57.2 | 97.92 | - | - |
| 35 | 975635700710 | 710 | PN10 | 368 | 567.16 | 480.82 | 42.1 | 97.26 | - | - |
| 36 | 975635100710 | 710 | PN16 | 368 | 567.16 | 480.82 | 64.5 | 143.52 | - | - |
| 37 | 975635700800 | 800 | PN10 | 383 | 590.28 | 500.42 | 47.4 | 128.69 | - | - |
| 38 | 975635100800 | 800 | PN16 | 383 | 590.28 | 500.42 | 72.8 | 194.18 | - | - |
| 39 | 975635700900 | 900 | PN10 | 433 | 667.34 | 565.74 | 53.3 | 183.16 | - | - |
| 40 | 975635100900 | 900 | PN16 | 433 | 667.34 | 565.74 | 81.7 | 272.79 | - | - |
| 41 | 975635701000 | 1000 | PN10 | 450 | 693.54 | 589.5 | 59.3 | 236.25 | - | - |
| 42 | 975635101000 | 1000 | PN16 | 450 | 693.54 | 589.5 | 90.8 | 349.65 | - | - |
| 43 | 975635701200 | 1200 | PN10 | 500 | 770 | 655 | 70.6 | 382.5 | - | - |
| 44 | 975635101200 | 1200 | PN16 | 500 | 770 | 655 | - | - | - | - |
| 45 | 975635701400 | 1400 | PN10 | 633 | 974.82 | 829.23 | 83 | 655.16 | - | - |
| 46 | 975635101400 | 1400 | PN16 | 633 | 974.82 | 829.23 | - | - | - | - |
| 47 | 975635701600 | 1600 | PN10 | 733 | 1128.82 | 960.23 | 94.8 | 996.15 | - | - |
| 48 | 975635101600 | 1600 | PN16 | 733 | 1128.82 | 960.23 | - | - | - | - |
