EF ELBOW °45
HDPE EF Elbow is an electrofusion jointing element made of high density polyethylene (PE100) raw material and specially designed for directional changes in pipelines. These elbows, which are produced in standard angles such as 30°, 45°, 60° and 90° in HDPE pipe systems, can also be supplied with different angles specific to the project. These parts are joined by electrofusion welding method and thanks to the integrated heater wires, they form a perfect, leak-proof and durable connection with the HDPE pipe by means of an electrofusion welding machine.
HDPE EF Elbow – Electrofusion Elbow Fitting
Areas of Use:
-
Drinking water networks
-
In natural gas distribution systems
-
Waste water and sewage lines
-
Agricultural irrigation systems
-
Industrial liquid transportation and infrastructure applications
Advantages:
-
Possibility to change direction at different angles
-
Robust and long-lasting joining by electrofusion
-
High resistance to corrosion and chemicals
-
Easy assembly, low labor cost
-
High pressure resistant construction
-
Tightness guarantee
Why Use HDPE EF Elbow?
When it is necessary to change the direction of the pipeline in projects, HDPE EF Elbow is an ideal solution with its practical use and high strength. It is an indispensable fitting for making directional changes without compromising the integrity of the system, especially in challenging terrain and ground conditions.
Implementation Scenarios:
-
City network drinking water distribution lines
-
Safe turns on natural gas lines
-
The need for angled connections in industrial process lines
-
Routing of irrigation lines in agricultural areas

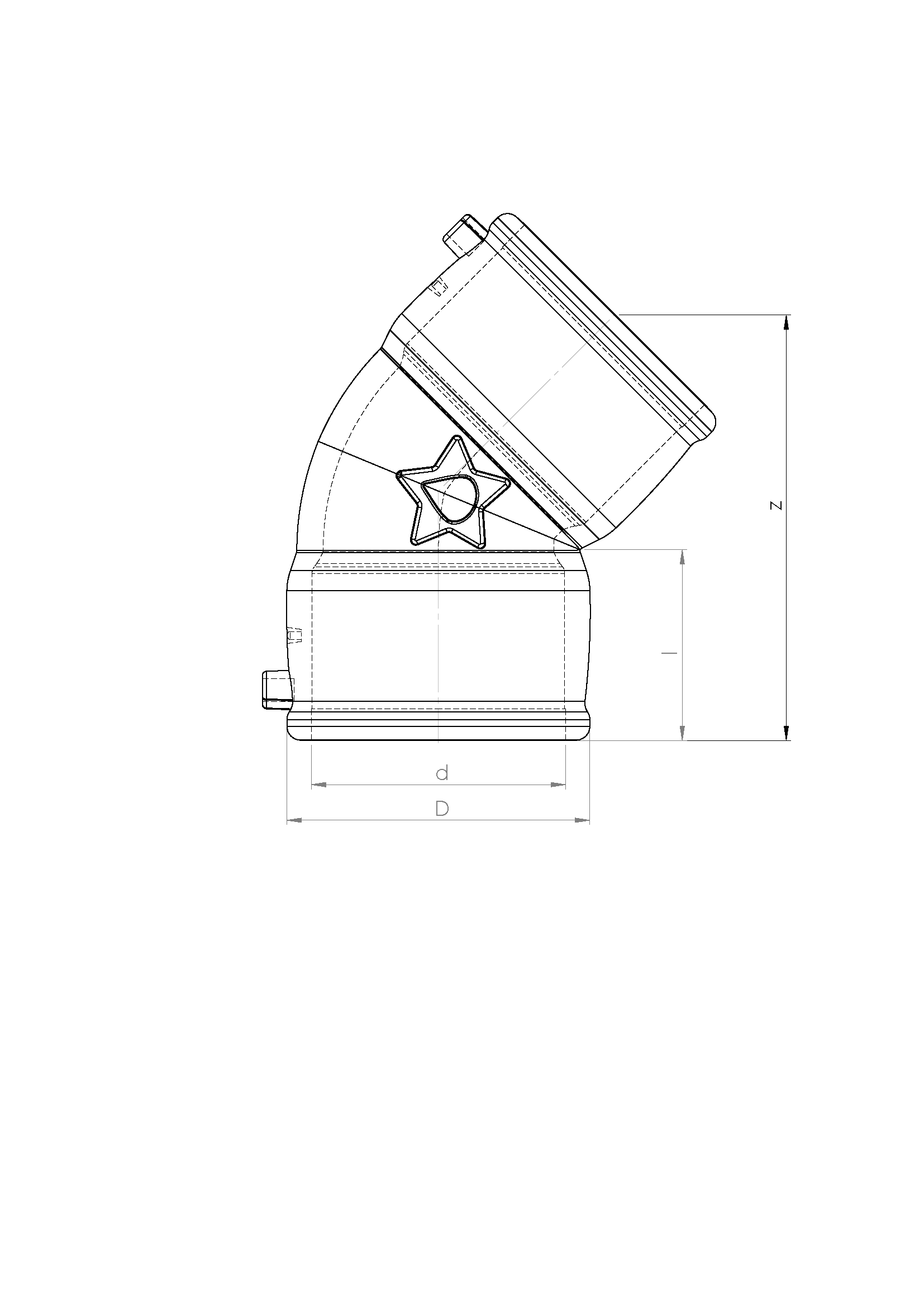

| Sıra | Ürün Kodu | Ürün Adı | D (mm) | d (mm) | le (mm) | Z (mm) | Ağırlık (Kg) |
|---|---|---|---|---|---|---|---|
| SEQ | Product Code | Product Name | D (mm) | d (mm) | le (mm) | Z (mm) | Weight (kg ) |
| 1 | 973335104590 | 90/45 EF Dirsek | 108 | 90 | 67.7 | 142 | 0.48 |
| 2 | 973335145110 | 110/45 EF Dirsek | 134.5 | 110 | 83 | 175.5 | 0.94 |
| 3 | 973335145160 | 160/45 Ef Dirsek | 190 | 160 | 119.2 | 270 | 2.33 |
| 4 | 973335145200 | 200/45 Ef Dirsek | 251.3 | 200 | 155 | 338 | 7.4 |
